Introduction:
HEPA air supply outlet is an important component used in ventilation system or air conditioning system, its main function is to send air into the room efficiently and ensure the even distribution of airflow.
Application | Mainly used in hospital operating rooms, laboratories or clean rooms in pharmaceutical factories. |
Housing material | Powder Coated cold rolled steel sheets |
Air inlet duct material | Powder Coated cold rolled steel sheets |
Uniform flow orifice plate material | Powder Coated cold rolled steel sheets/Powder Coated cold rolled aluminium sheets/Stainless steel (SUS304) |
Briquetting material | Galvanized steel sheet |
Heating insulation material | PE |
HEPA filter | Mini pleat HEPA filter/Deep pleat HEPA filter/Top Gel sealing HEPA filter/Side Gel sealing HEPA filter |
Efficiency | 99.99% / 99.999% at 0.3μm 99.9995% / 99.99995% at 0.12μm |
Customized size | Available |

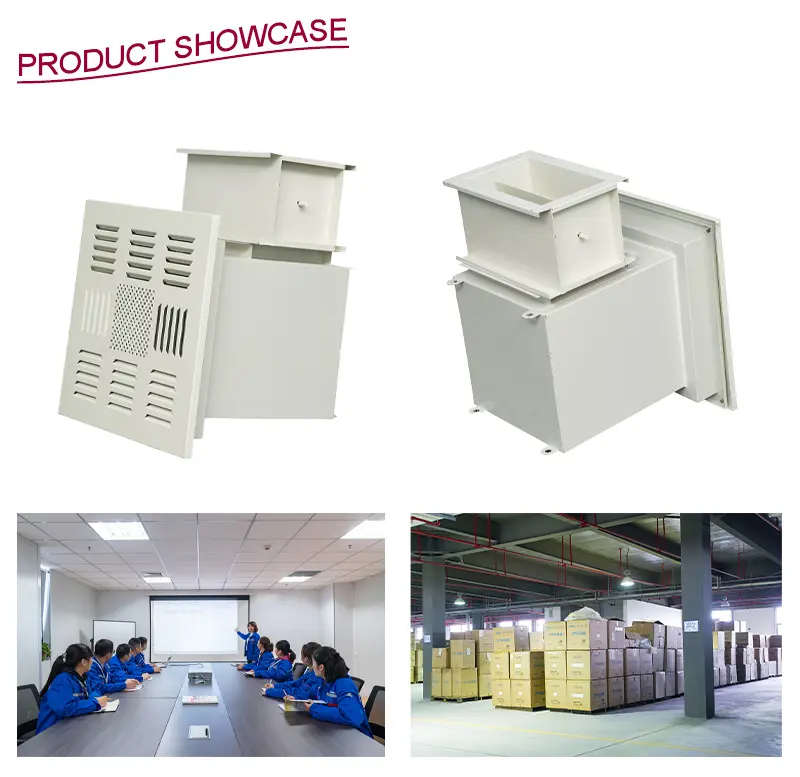

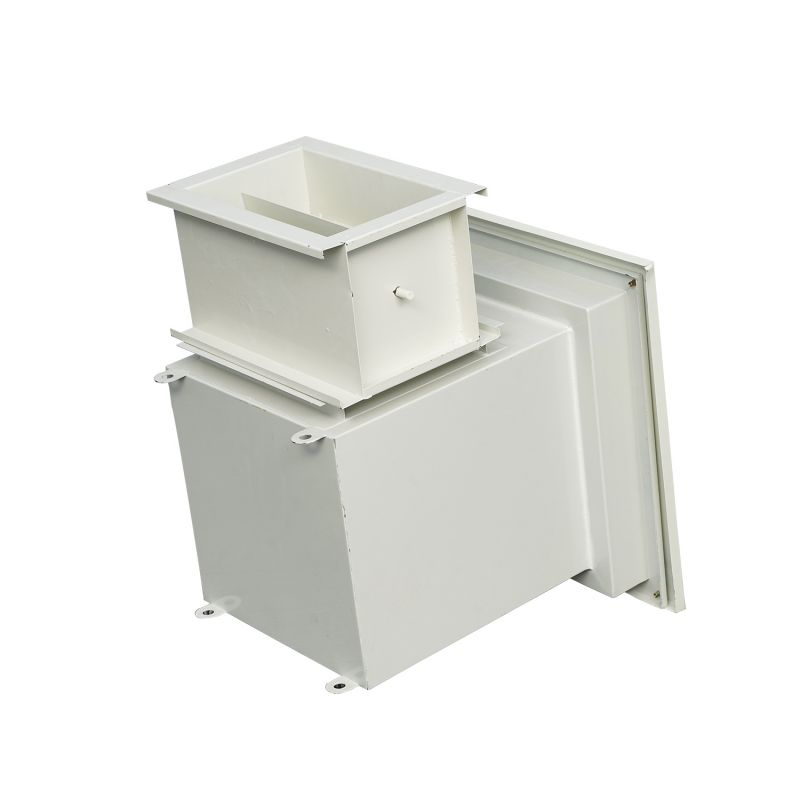

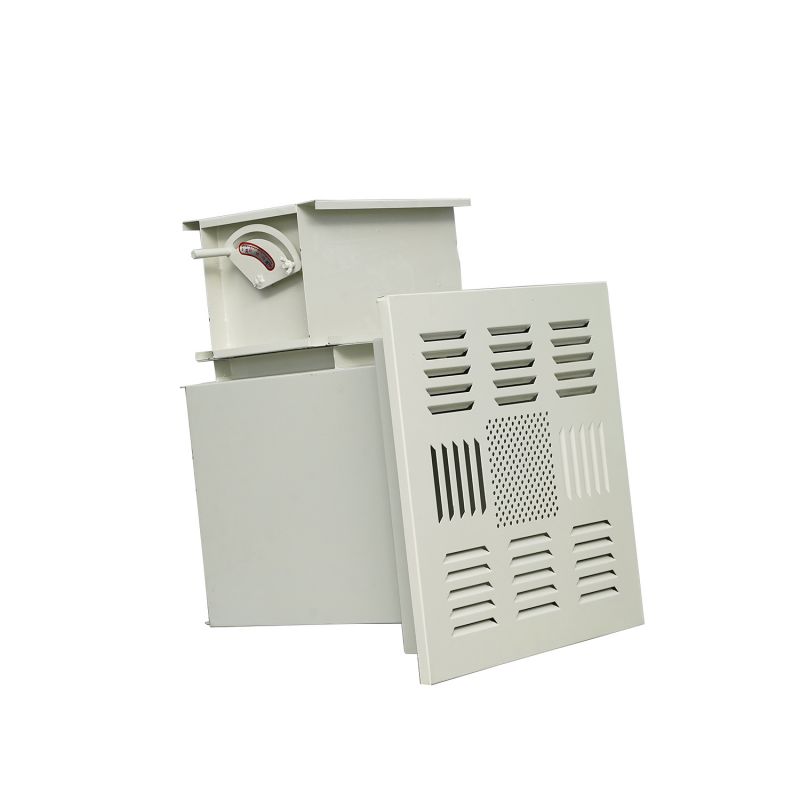

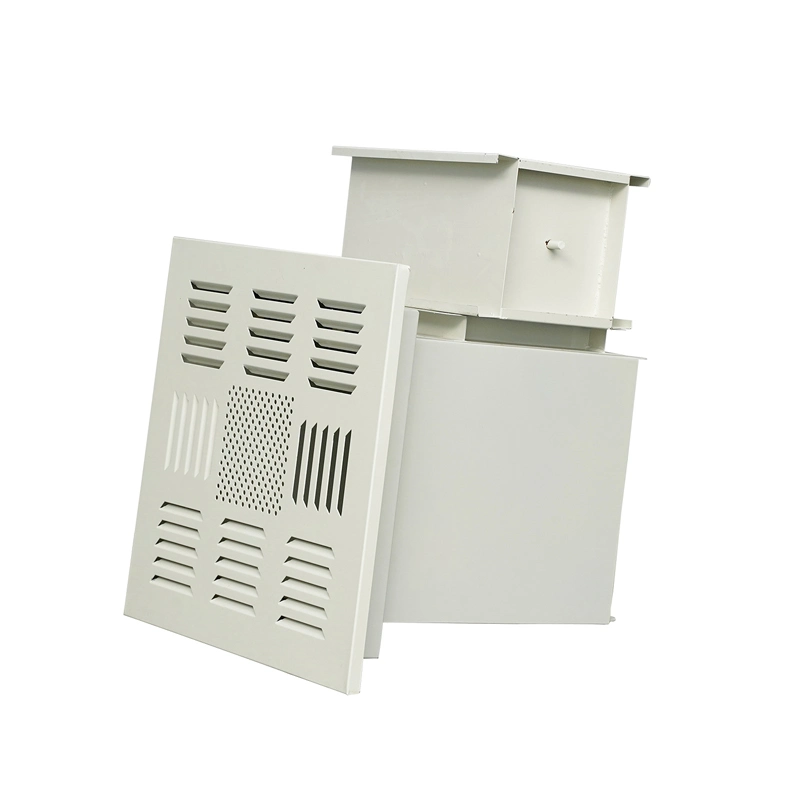

![HEPA Air Supply Outlet]( "HEPA Air Supply Outlet")
Common dimensions:
Model | Air flow (m³/h) | Top inlet duct type Box dimension(mm) | Side inlet duct type Box dimension(mm) | HEPA filter Dimension (mm) | Inlet duct Dimension (mm) |
GKF-5A | 500
| 465×465×280
| 465×465×450 | 400×400×95 (Top gel sealing ) | 200×200
|
GKF-10A
| 1000 | 615×615×280 | 615×615×450
| 550×550×95 (Top gel sealing) | 200×320
|
GKF-15A | 1500 | 695×695×280
| 695×695×450
| 630×630×95 (Top gel sealing) | 250×320
|
GKF-20A | 2000
| 675×980×280
| 675×980×450
| 610×915×95 (Top gel sealing) | 250×500
|
GKF-5B | 500
| 500×500×280 | 500×500×450
| 430×430×90 (Side gel sealing) | 200×200
|
GKF-10B
| 1000
| 680×680×280
| 680×680×450
| 610×610×90 (Side gel sealing) | 200×320
|
GKF-15B
| 1500
| 985×680×280
| 985×680×450
| 915×610×90 (Side gel sealing) | 200×400
|
GKF-20B
| 2000
| 1290×680×280
| 1290×680×450
| 1220×610×90 (Side gel sealing) | 200×500
|
GKF-30B
| 3000
| 1290×985×280
| 1290×985×450
| 1220×915×90 (Side gel sealing) | 200×600
|
Performance Characteristics:
1.Provides even airflow distribution: HEPA air supply outlets are well designed to ensure that air is evenly distributed throughout the room or area, improving air comfort.
2.Low Noise: The optimised design of the HEPA air supply outlet reduces the noise generated, providing a more quiet and comfortable use of the environment.
3.High efficiency and energy saving: By proper design of air supply outlets, energy consumption can be reduced, the efficiency of the air conditioning system can be improved, and energy costs can be reduced.
4.Easy to install and maintain: HEPA air supply outlets are usually simple in structure, easy to install and relatively easy to maintain.
Applications:
HEPA air supply outlet is an indispensable key component in air conditioning system or ventilation system, through its reasonable design, it can ensure the circulation and even distribution of indoor air, and improve the air quality and comfort. Therefore, its application places are very wide.
1.Office buildings: HEPA air supply outlets are commonly found in large offices and meeting rooms in office buildings to ensure that employees receive comfortable indoor airflow while they work.
2.Commercial Centres: Commercial centres such as shopping malls and department stores also often use HEPA air supply outlets to ensure that customers enjoy comfortable air circulation while shopping.
3.Catering venues: HEPA air supply outlets are used in restaurants, bars and other catering venues to enhance the customer's dining experience and ensure clean indoor air.
4.Medical institutions: Hospitals, clinics and other medical institutions install HEPA air supply outlets in operating theatres, wards and other areas to ensure clean, sterile air.
![Application]( "Application")
Usage Notes:
1.Regular cleaning and maintenance: keep the HEPA air supply outlet clean to avoid dust clogging affecting the air supply effect.
2.Avoid adjusting the air supply outlet arbitrarily: it is better to be adjusted by professionals according to the actual needs to avoid affecting the working effect of the air conditioning or ventilation system.
3.Regular inspection and maintenance: regularly check whether the connecting parts of the HEPA air supply outlet are tight, whether there is any damage, and carry out maintenance or replacement in time.
4.According to the actual demand to choose the appropriate specifications and models of air supply outlets, to ensure that they are matched with the air conditioning system, to improve the performance of the system efficiency.
