Introduction:
HEPA Mini Pleat Air Filter is a kind of high-efficiency filter commonly used in the terminal filtration section of air conditioning or ventilation systems. It is usually made of ultra-fine glass fibre media, with galvanized iron, aluminium or stainless steel frame as the frame, and hot melt adhesive is used to separate the filter paper at equal distances.

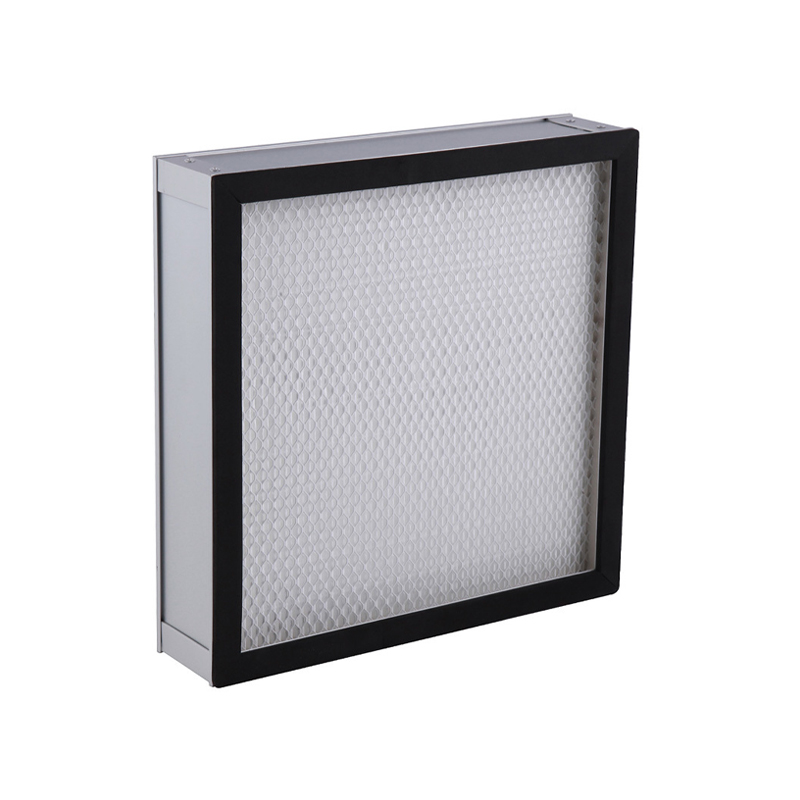

![HEPA Mini Pleat Air Filter]( "HEPA Mini Pleat Air Filter")
Common dimensions:
Size
(mm) | CMH | I.N.P
(Pa) | F.N.P
(Pa) | Filter
object
(μm) | EFF.
(%) | Filtration
Class | Filtration
Area
(m2) |
305*610*50 | 350/700 | <30/70 | <300/500 | 0.3 | 85≤E<95 | E10 | 3.85 |
610*610*50 | 650/1300 | <30/70 | <300/500 | 0.3 | 85≤E<95 | E10 | 7.44 |
1220*610*50 | 1200/2400 | <30/70 | <300/500 | 0.3 | 85≤E<95 | E10 | 14.59 |
305*610*50 | 350/700 | <55/120 | <300/500 | 0.3 | 95≤E<99.5 | E11 | 3.85 |
610*610*50 | 650/1300 | <55/120 | <300/500 | 0.3 | 95≤E<99.5 | E11 | 7.44 |
1220*610*50 | 1200/2400 | <55/120 | <300/500 | 0.3 | 95≤E<99.5 | E11 | 14.59 |
305*610*50 | 350/700 | <75/180 | <300/500 | 0.3 | 99.5≤E<99.95 | E12 | 3.85 |
610*610*50 | 650/1300 | <75/180 | <300/500 | 0.3 | 99.5≤E<99.95 | E12 | 7.44 |
1220*610*50 | 1200/2400 | <75/180 | <300/500 | 0.3 | 99.5≤E<99.95 | E12 | 14.59 |
305*610*50 | 350/700 | <100/205 | <300/500 | 0.3 | 99.95≤E<99.995 | H13 | 3.85 |
610*610*50 | 650/1300 | <100/205 | <300/500 | 0.3 | 99.95≤E<99.995 | H13 | 7.44 |
1220*610*50 | 1200/2400 | <100/205 | <300/500 | 0.3 | 99.95≤E<99.995 | H13 | 14.59 |
305*610*50 | 350/700 | <110/220 | <300/500 | 0.3 | 99.995≤E<99.9995 | H14 | 3.85 |
610*610*50 | 650/1300 | <110/220 | <300/500 | 0.3 | 99.995≤E<99.9995 | H14 | 7.44 |
1220*610*50 | 1200/2400 | <110/220 | <300/500 | 0.3 | 99.995≤E<99.9995 | H14 | 14.59 |
305*610*50 | 350/700 | <160/295 | <300/500 | 0.12 | 99.9995≤E<99.9997 | U15 | 3.85 |
610*610*50 | 650/1300 | <160/295 | <300/500 | 0.12 | 99.9995≤E<99.9997 | U15 | 7.44 |
1220*610*50 | 1200/2400 | <160/295 | <300/500 | 0.12 | 99.9995≤E<99.9997 | U15 | 14.59 |
305*610*50 | 350/700 | <175/320 | <300/500 | 0.12 | 99.9997≤E<99.99997 | U16 | 3.85 |
610*610*50 | 650/1300 | <175/320 | <300/500 | 0.12 | 99.9997≤E<99.99997 | U16 | 7.44 |
1220*610*50 | 1200/2400 | <175/320 | <300/500 | 0.12 | 99.9997≤E<99.99997 | U16 | 14.59 |
Features:
1. High efficiency filtration. Due to the use of filter media made of ultra-fine glass fibre, the HEPA Mini Pleat Air Filter can effectively filter fine particles in indoor air, including PM2.5, bacteria, viruses and other harmful substances. It has good filtration efficiency and removal rate, which can effectively purify the air and protect people's health.
2. High stability. The filter media of HEPA Mini Pleat Air Filter is made of ultra-fine glass fibre, which has excellent stability and durability, and can maintain high efficiency filtration performance for a long time, reduce the number of filter replacements, and lower maintenance costs.
3. Convenient installation. The HEPA Mini Pleat Air Filter adopts a frame fixing method, which is simple and convenient to install, and can be quickly connected and used in conjunction with air conditioning or ventilation systems.
Applications:
HEPA Mini Pleat Air Filter is a kind of high efficiency air purification filter, which has the characteristics of high efficiency filtration, durability and easy installation, etc. It is suitable for different kinds of air conditioning or ventilation systems, which greatly improves the indoor air quality and protects people's health.
Widely used in the terminal filtration section of various air conditioning or ventilation systems, such as commercial, medical, industrial, household and other different occasions. It is especially suitable for places with high requirements for air filtration, such as hospitals, laboratories, printing houses, etc.
![Applications]( "Applications")
