Introduction:

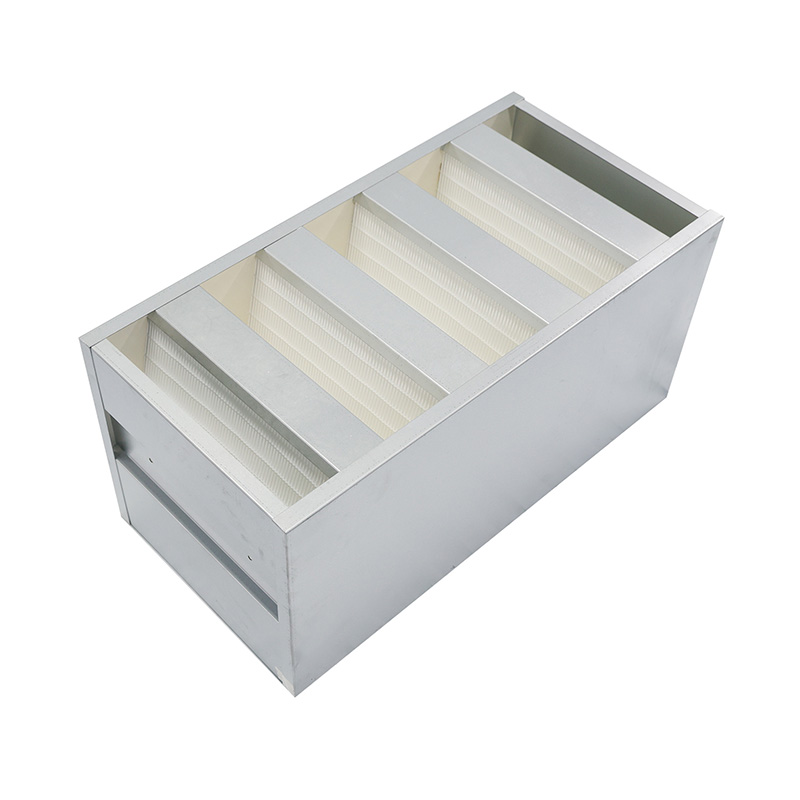

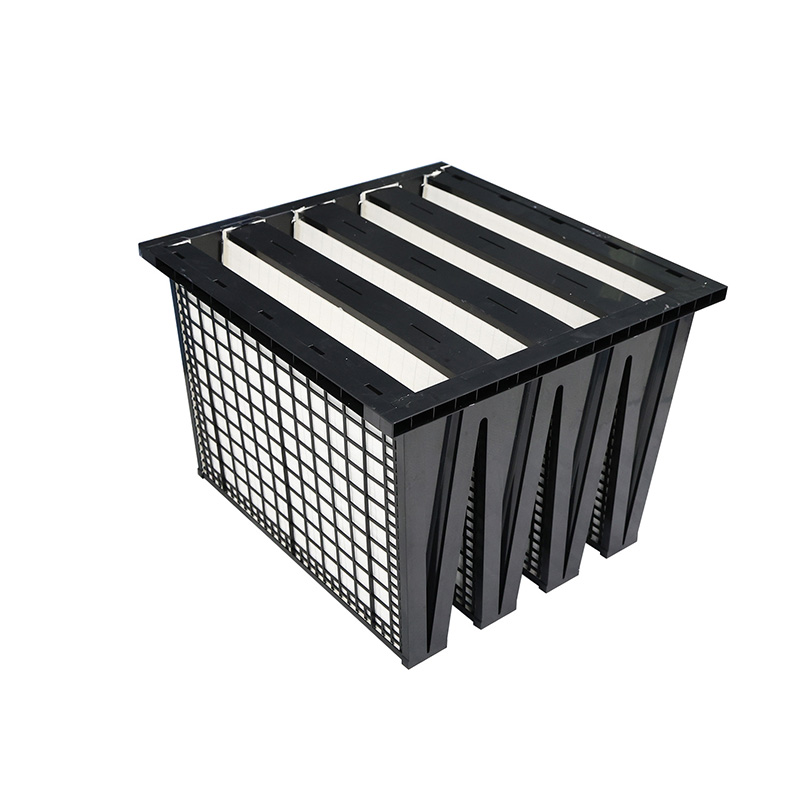

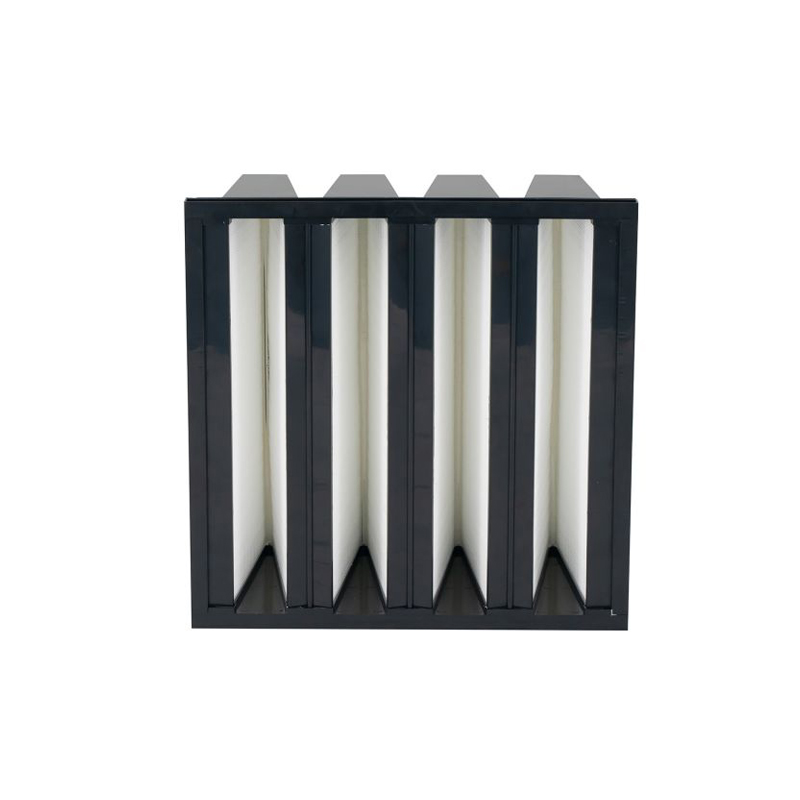

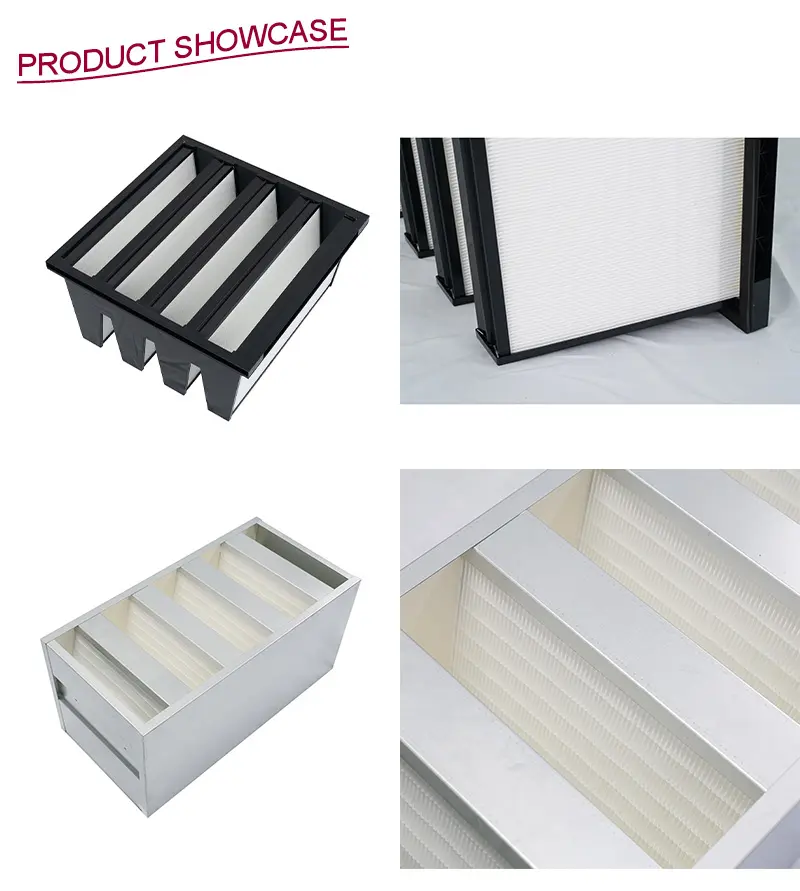

The HEPA V Cell Filter is an efficient filtration device with a unique V-shaped structure design. By tilting and arranging multiple filter materials to form a wedge-shaped combination, it significantly increases the filtration area and reduces the air resistance. Its core adopts HEPA-grade glass fiber filter paper or PP filter paper, with a filtration efficiency of over 99.97% for 0.3μm particles. Meanwhile, the V-shaped structure endows it with stronger dust-holding capacity and a longer service life.
Due to its advantages of high dust capacity, long service life and low wind resistance, HEPA V Cell Filter is widely used in clean rooms, hospitals, electronic plants and other scenes with strict requirements on air cleanliness. It is outstanding in energy saving and space compactness, and is an ideal choice for terminal filtration.
![HEPA V Cell Filter]( "HEPA V Cell Filter")
| Frame | Usually made of aluminium alloy, galvanized steel or ABS plastic, the main function of the outer frame is to support and fix the whole filter. |
Filter media | Filter Media: The main part of HEPA V Cell Filter is the filter media, which is usually made of high-efficiency filter material, such as glass fibre, with high filtration efficiency and particle trapping capacity. |
Separator material | Hot melt adhesive is used to separate the filter media to ensure that the air passes evenly through the whole filter, avoiding the accumulation and bypassing of fine particles in the filtration process. |
Sealing strip | Sealing strip(material: EVA/EPDM) on the outer frame to ensure airtightness. |
Max. temperature | 70℃ |
Max. humidity | 100% RH |
Common dimensions:
Model | Actual size
W×H×D(mm) | Air flow
(m³/h) | Initial
pressure drop(Pa) | Final
pressure drop(Pa) |
Box type | H4VH305610292 | 305×610×292 | 1700 | 249Pa
Face velocity 0.85m/sec | 500Pa
*Proposed value |
H4VH610610292 | 610×610×292 | 3400 |
Single header type | H4VH287592292 | 287×592×292 | 1700 | 265Pa
Face velocity 0.45m/sec | 220Pa
*Proposed value |
H4VH592592292 | 592×592×292 | 3400 |
Performance characteristics:
1. High-efficiency filtration performance
The HEPA V Cell Filter adopts high-efficiency filter materials of HEPA grade (glass fiber or PP material), with a filtration efficiency of over 99.97% for 0.3μm particles, and can effectively intercept tiny particles such as PM2.5, bacteria, and viruses.
It complies with international standards such as ISO 29463 and EN1822, and is suitable for high-cleanliness environments such as clean rooms and biosafety laboratories.
2. Low air resistance and high dust holding capacity
The V-shaped structure design of the V Cell Filter increases the effective filtration area. Compared with the traditional panel type filter, the air resistance is reduced by 20% to 30%, and the energy-saving effect is remarkable.
The filter material is arranged in multiple layers in a folded manner, which has a larger dust holding capacity, a longer service life, reduces the frequency of replacement and lowers the operating cost.
3. Stable structure and good sealing performance
The V Bank Air Filter adopts aluminum alloy, galvanized iron or ABS plastic frames, which are corrosion-resistant and deformable, and is suitable for high humidity or corrosive environments.
Sealed with high-quality EPDM sealing strips to ensure no leakage and meet the requirements of DOP/PAO leak detection tests.
4. Compact design, flexible installation
The V-shaped arrangement saves space and is particularly suitable for installation in HVAC or AHU systems with limited space. The V Bank HEPA Filter is applicable to the efficient end-stage filtration requirements in industries such as medicine, electronics, and food.
![SNYLI Production workshop]( "SNYLI Production workshop")
Application:
1. Pharmaceutical and biological clean environment
HEPA V Cell Filter can be used in aseptic workshops of pharmaceutical factories, GMP clean rooms, operating rooms of hospitals, laboratories, etc., to ensure that the air cleanliness meets grade A or ISO 5 standards and prevent microbial contamination.
2. Electronics and precision manufacturing
The V Bank HEPA Filter is applicable to semiconductor chip workshops, liquid crystal panel production lines, precision instrument assembly areas, etc. It effectively filters dust and particulate matter to ensure a high-precision production environment.
3. Food and medical packaging industry
V Cell Filter can also be used in food processing plants, beverage filling workshops, medical device packaging areas, etc., to prevent bacterial and particulate contamination and meet hygiene and safety standards.
4. High-end public and industrial venues
V Bank Filters can also be applied in airports, data centers, nuclear power plants, the chemical industry, etc., as terminal high-efficiency filters to ensure the air purification effect and protect the health of key equipment and personnel.
![Application]( "Application")
